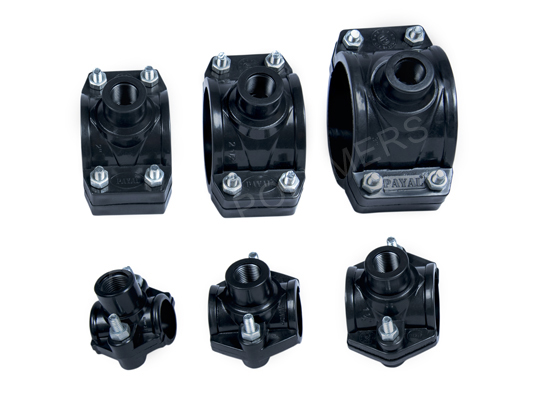

We are a well-known organization that is engaged in manufacturing, supplying and trading PVC Service Saddle. Available in various sizes, these products are manufactured using quality raw material and modern machinery that are obtained from the reliable vendors of the market. Further, our quality controllers thoroughly test all these products on different parameters to determine zero defect.

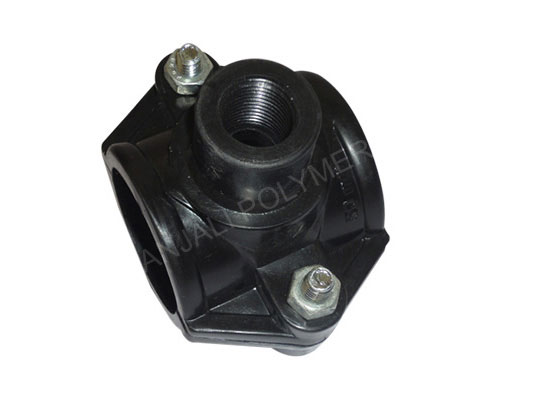

The service saddle is used for joining long distance irrigation pipes. It is also used for connecting the branches of , HDPE, PP and PVC pipes that are used while various irrigation processes and in house service connections.
| DESIGN & MANUFACTURING STD. | POLYPROPYLENE SO IT COMPACT DESIGN | |
| APPLICATION : | DRIP IRRIGATION SYSTEM AND AGRICULTURAL | |
| HYDRAULIC TEST PRESSURE : | 150 PSI | |
| MAX. WORKING TEMP. : | 70° C (CONSISTENTLY) | |
| SIZE RANGE : | 32MM TO 315MM ( 1” to 12” ) | |
| SIZE | THREAD B.S.P | L1 | H | A | B | C | D | ||||
| IN. | MM | ||||||||||
| 1″ | 32 | �” , 3/4? | 23 | 66 | 55 | 73 | - | 53 | |||
| 1 1/4″ | 40 | �” , 3/4? , 1? | 24 | 74 | 66 | 86 | - | 64 | |||
| 1 1/2″ | 50 | �” , 3/4? , 1? | 24 | 86 | 78 | 99 | - | 66 | |||
| 2″ | 63 | �” , 3/4? ,1? | 25 | 103 | 88 | 111 | 40 | 66 | |||
| 2″ | 63 | 1¼” , 1½” | 32 | 105 | 90 | 114 | 50 | 75 | |||
| 2 1/2″ | 75 | �” , 3/4? , 1? | 26 | 114 | 98 | 121 | 40 | 66 | |||
| 2 1/2″ | 75 | 1¼” ,1½” | 32 | 122 | 100 | 125 | 50 | 75 | |||
| 3″ | 90 | �” , 3/4? , 1? | 26 | 127 | 114 | 135 | 44 | 70 | |||
| 3″ | 90 | 1¼” , 1½” | 32 | 138 | 114 | 138 | 55 | 80 | |||
| 4″ | 110 | �” , 3/4? , 1? | 26 | 150 | 132 | 155 | 44 | 70 | |||
| 4″ | 110 | 1¼” ,1½” , 2″ | 32 | 155 | 135 | 160 | 66 | 92 | |||
| 4 1/2″ | 125 | �” , 3/4? , 1? | 33 | 175 | 150 | 175 | 64 | 95 | |||
| 4 1/2″ | 125 | 11/4″ ,1½” , 2″ | 33 | 175 | 150 | 175 | 64 | 95 | |||
| 5″ | 140 | �” ,3/4? , 1? | 33 | 184 | 170 | 195 | 63 | 94 | |||
| 5″ | 140 | 1¼” ,1½” , 2″ | 33 | 184 | 170 | 195 | 63 | 94 | |||
| 6″ | 160 | �” , 3/4? , 1" | 33 | 209 | 190 | 215 | 63 | 94 | |||
| 6″ | 160 | 1¼” ,1½” , 2″ | 33 | 209 | 190 | 215 | 63 | 94 | |||
| SUITABLE FOR WATER SUPPLY | |||||||||||
| SR NO. | DESCRIPTION | MATERIAL | QTY. | ||||||||
| 01 | TOP BODY | POLYPROPYLENE | 1 | ||||||||
| 02 | BOTTOM BODY | PP / POLYCARBONAET | 1 | ||||||||
| 03 | “0” RING | NEOPRENE RUBBER (CR) NITRILE RUBBER(NBR) | 1 | ||||||||
| 04 | NUT & BOLT | MS (ZING COATED) / SS | 4 | ||||||||
