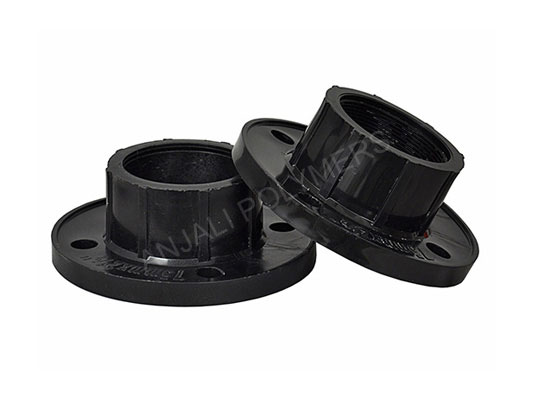

Our firm is Agriculture & Irrigation in manufacturing and supplying a wide range of Plastic Flange. This range of products are available in size ranging from 63 mm to 160 mm (2� to 6�). Owing to their unmatched features like longer service life, corrosion & abrasion resistance, compact designs and low maintenance, these products are widely appreciated by the customers. Our range are manufactured by using premium quality raw material and advanced technology.

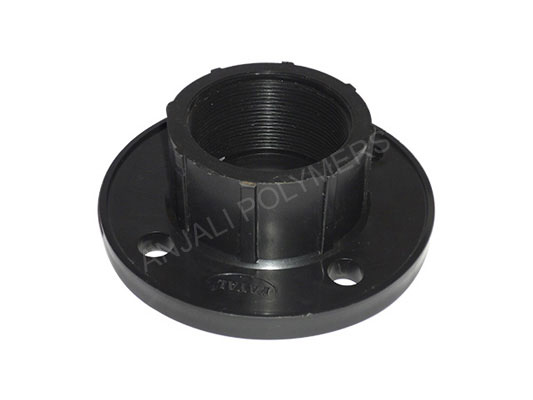

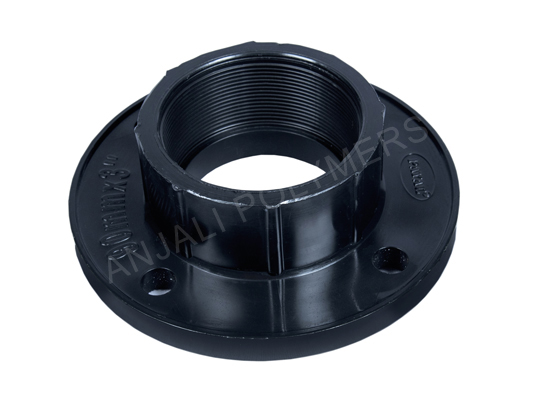

| MATERIAL OF CONSTRUCTION : | PP (POLYPROPYLENE) / PVC | |||||||||||
| END CONNECTIONS : | FLANGED AS PER ANSI B 16.5 (TABLE -D ) SOCKET THREADED DIMENSION AS PER 150-7-1 / IS-554/BS-21 – PLAIN CONNECTION REQUIRED PVC PIPE SIZE : | |||||||||||
| MAX. WORKING TEMP. : | 70° C (CONSISTENTLY) | |||||||||||
| HYD. TEST PRESSURE : | 150 PSI / 10 Kg. | |||||||||||
| SIZE RANGE : | 63M.M. TO 160 M.M. (2” to 6”) | |||||||||||
| SUITABLE FOR WATER SUPPLY | ||||||||||||
| SIZE | D | A | B | L | L1 | ID | M | N | P.C.D. | |||
| IN. | MM | |||||||||||
| 2? | 63 | 150 | 80 | 15 | 49 | 36 | 50 | 16 | 4 | 114 | ||
| 2 1/2? | 75 | 162 | 93 | 15 | 59 | 51 | 65 | 16 | 4 | 127 | ||
| 3? | 90 | 179 | 109 | 15 | 58 | 47 | 76.5 | 16 | 4 | 146 | ||
| 4? | 110 | 217 | 130 | 16 | 68 | 57 | 100 | 17 | 4 | 178 | ||
| 5? | 140 | 248 | 157 | 15 | 72 | 67 | 130 | 16 | 8 | 210 | ||
| 6? | 160 | 277 | 178 | 15 | 78 | 72 | 150 | 17 | 8 | 235 | ||
