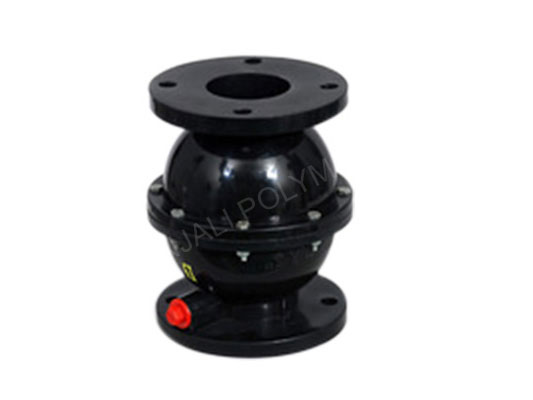

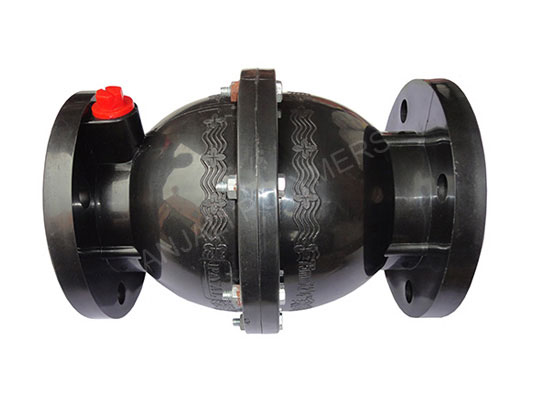

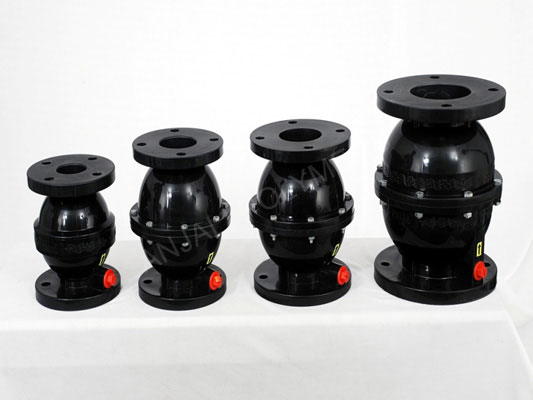

| MATERIAL OF CONSTRUCTION : | PP (POLYPROPYLENE) |
| END CONNECTIONS : | FLANGED AS PER ANSI B 16.5 (TABLE -D ) |
| MAX. WORKING TEMP. : | 70° C (CONSISTENTLY) |
| HYDRAULIC TEST PRESSURE : | 150 PSI |
| SIZE : | 63 TO 160 MM (2” to 6”) |
| SIZE | OD | D | D1 | T | L | M | N | P.C.D. | |||||||
| IN. | MM | ||||||||||||||
| 2″ | 63 | 150 | 63 | 177 | 15 | 166 | 16 | 4 | 114 | ||||||
| 2 1/2″ | 75 | 158 | 75 | 190 | 16 | 232 | 16 | 4 | 127 |
||||||
| 3″ | 90 | 178 | 90 | 151 | 16 | 228 | 16 | 4 | 146 | ||||||
| 4″ | 110 | 217 | 110 | 222 | 20 | 284 | 19 | 4 | 178 | ||||||
| 5″ | 140 | 253 | 128 | 287 | 20 | 300 | 19 | 8 | 208 | ||||||
| 6″ | 160 | 279 | 152 | 287 | 22 | 310 | 19 | 8 | 235 | ||||||
| SUITABLE FOR WATER SUPPLY | |||||||||||||||
| SR NO. | DESCRIPTION | MATERIAL | QTY. | ||||||||||||
| 01 | TOP & BOTTOM BODY | POLYPROPYLENE | 1 + 1 | ||||||||||||
| 02 | BALL | PP / POLYCARBONAET | 1 | ||||||||||||
| 03 | NUT & BOLT | M.S. / S.S. | 8 | ||||||||||||
| 04 | “0” RING | NEOPRENE RUBBER (CR) / NITRILE RUBBER(NBR) | 1 | ||||||||||||
| 05 | BALL SEAT | NEOPRENE RUBBER (CR) / NITRILE RUBBER(NBR) | 1 | ||||||||||||
| 06 | 1/2″ PLUG BUSH | POLYPROPYLENE | 1 | ||||||||||||
| 07 | 1/2″ BY PASS VALVE CONNECTION | POLYPROPYLENE | 1 | ||||||||||||
